Four Pillar Die Sets

Four Pillar Die Sets find utility of pressing and punching various products in different industries. This range of die sets is precisely manufactured by using metals such as cast iron and mild steel. These die sets are available in the categories of standard, stock and special die sets. For gaining optimum stability, four pillars along with fool proofing arrangement system is being provided in these die sets. Ball bearing components fixed in these sets offers flawless functionality to these die sets.

Features
  • Rust proof
  • Impeccable surface grinding capability
  • Dimensional precision
  • Stable dimensions
  • Excellent performance
  • Longevity
  • Accurate Blanchard
Applications
  • Automobile industry
  • Die making industry
  • Sheet metal industry
  • Stamping industry
  • Machine tool industry
  • Engineering industry

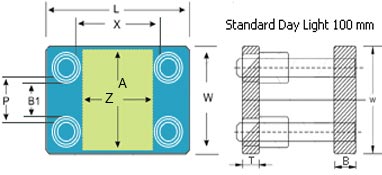

Specifications
S. No Ref. Code Z A B1 P L W X T B Pillar OD Bush OD
1 F1515 150 150 68 89 280 180 189 25 30 25 46
2 F1813 180 130 48 69 310 160 219 25 30 25 46
3 F1818 180 180 98 119 310 210 219 25 30 25 46
4 F2015 200 150 68 89 330 180 239 30 35 25 46
5 F2020 200 200 118 139 330 230 239 30 35 25 46
6 F2318 230 180 86 112 380 220 272 30 35 28 54
7 F2323 230 230 136 162 380 270 272 30 35 28 54
8 F2515 250 150 56 82 400 190 292 30 35 28 54
9 F2520 250 200 106 132 400 240 292 35 40 28 54
10 F2525 250 250 156 182 400 290 292 35 40 28 54
11 F3020 300 200 106 132 460 240 352 35 40 28 54
12 F3025 300 250 164 188 460 300 348 35 45 32 56
13 F3520 350 200 114 138 510 250 398 35 45 32 56
14 F3530 350 300 214 238 510 350 398 35 45 32 56
15 F4020 400 200 114 138 560 250 448 35 45 32 56
16 F4025 400 250 164 188 560 300 448 35 45 32 56
17 F4030 400 300 214 238 560 350 448 35 45 32 56
18 F4520 450 200 114 138 610 250 498 35 45 32 56
19 F4525 450 250 164 188 610 300 498 35 45 32 56
20 F4530 450 300 198 224 630 350 504 40 50 36 62
21 F4535 450 350 248 274 630 400 504 40 50 36 62
22 F5025 500 250 148 174 680 300 554 40 50 36 62
23 F5030 500 300 198 224 680 350 554 40 50 36 62
24 F5035 500 350 248 274 680 400 554 40 50 36 62
25 F5040 500 400 295 320 680 450 550 45 55 40 65
26 F5530 550 300 195 220 730 350 600 45 55 40 65
27 F5540 550 400 295 320 730 450 600 45 55 40 65
28 F6030 600 300 195 220 780 350 650 45 55 40 65
29 F6040 600 400 295 320 780 350 650 45 55 40 65
30 F7040 700 400 295 320 880 450 750 50 60 40 65
